FS-20-01 Automatic Electric Float Switch Flow Sensor

Application

PolexTech FS float switch flow sensor is designed for solar water pumps which are not available for water level sensors, especially built-in controller types. It’s simple, efficient, and reliable, the function is the same as a water level sensor.

Technical Data

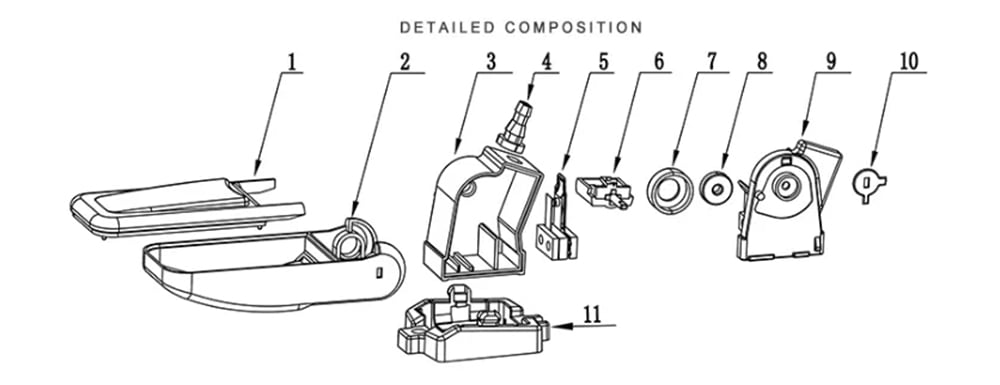

Float Switch Structure

Introduction

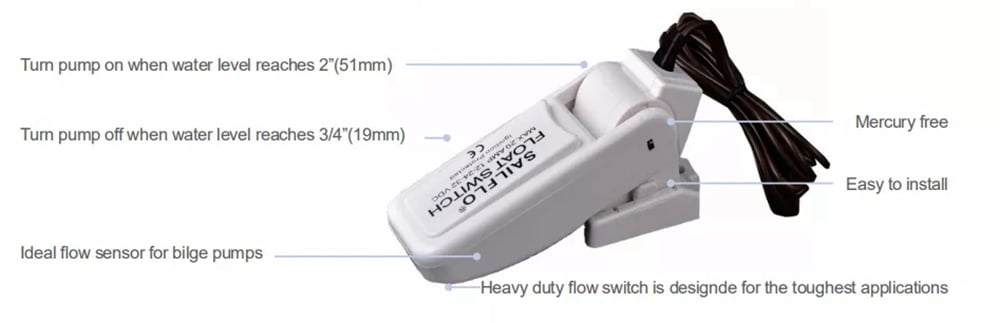

• Suitable for 12V/24V bilge pumps, with a maximum of 20 Amps.
• Designed to automatically activate your bilge pump when water is present.

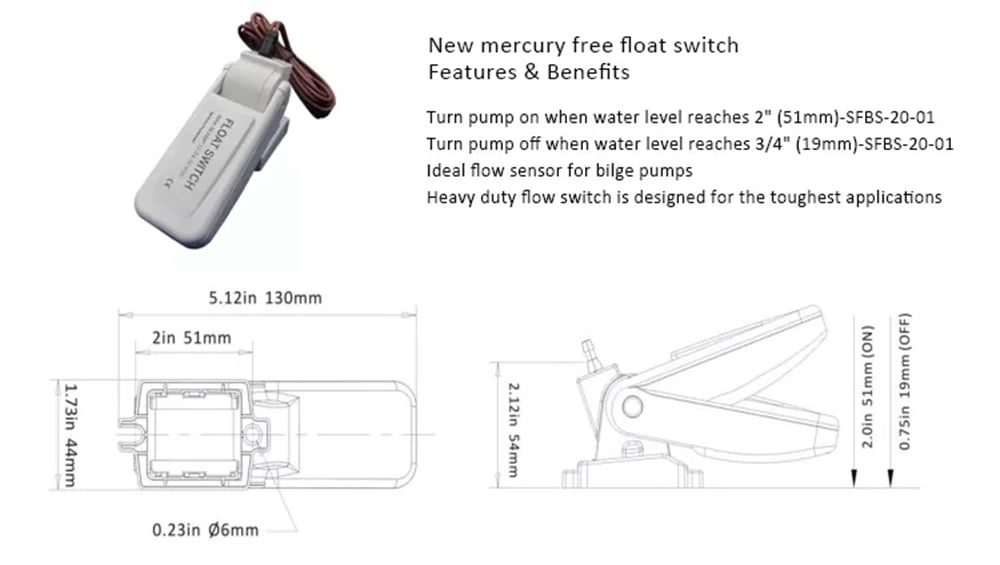

• Turns pump on when water level reaches 2″(51mm).
• Turns pump off when water level reaches 3/4″(19mm).
• Non-mercury, environmentally friendly switch.
• Ignition protection.
• Heavy-duty nylon housing.
• Water/moisture tight seals.
• Rustproof and corrosion-resistant.
• The removable snap-on base for easy fitting, servicing and cleaning.
• Silent and vibration-less operation.
• NOT to be used with AC voltage applications.

Manual Book

PDF manual book is available for checking, please contact us for sending details.
