6HSSC-A/D Series AC DC Hybrid Submersible Solar Water Pump – Outer Controller

  • Application: Drinking water supply, livestock watering, agriculture irrigation, desert control, etc.
  • Outer MPPT controller: Fast and easy installation.
  • Warranty: 365 days after delivery.
  • AC DC hybrid system is available for solar panels, AC electricity, battery, and generator.
  • FREE accessories are provided in the package box for installation.

Additional information

Model

6HSSC-A/D

Power

3KW-15KW (4HP-20HP)

AC Voltage

AC 350V-460V

DC Voltage

DC 480V-800V

Max Head

40-270 Meters (131-886 Feet)

Max Flow

36M3/H-130M3/H

Pump Size

6 inch

Outlet Size

3 inch

Protection

IP 68

Product Details:


Application

PolexTech 6HSSC-A/D series AC DC hybrid power centrifugal pumps are designed for drinking water supply, livestock watering, agriculture irrigation, desert control, industrial water supply, construction water supply, pasture watering, etc.

It’s simple, efficient, and reliable, widely used in the borehole, deep well, lake, river, pond, clean water places except for sea water, sewage water, chemical water, etc.

Installation Hybrid Power

Using a hybrid system, we can meet 95% of our annual demand with solar and the 5% annual extra (30% for 2 months) with generator power.

Installing an expensive and inefficient battery system is not a good answer as the capital investment and relatively short life would make the project very expensive. Installing hybrid power is a much more sensible way to manage these short-term needs.

Where there is a flow or pressure critical water pumping application, hybrid power can manage the start and end of day transition from solar to grid or from solar to generator power seamlessly and without the need for any operator intervention.

Performance Data

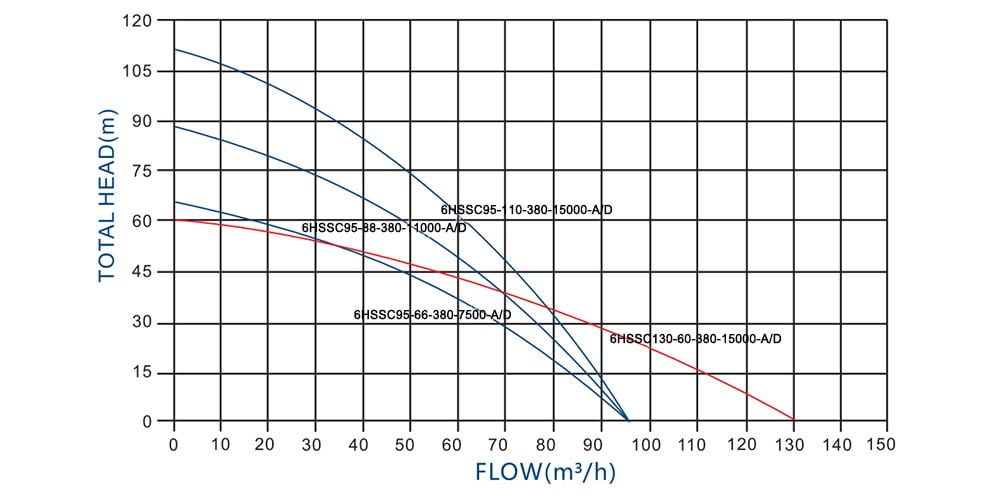

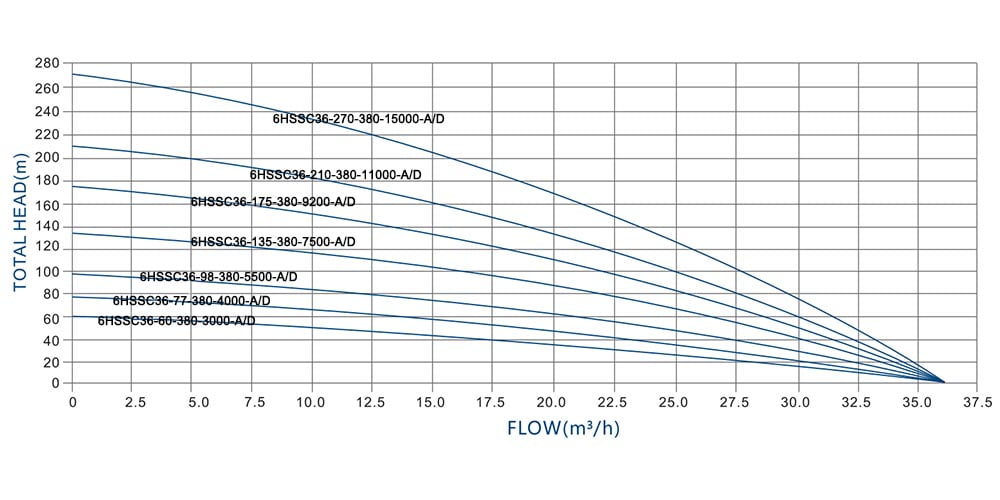

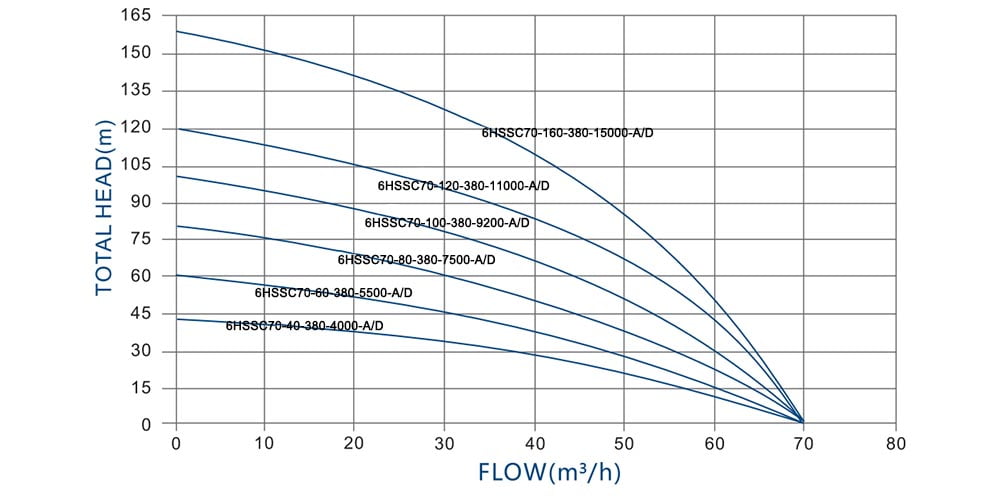

Flow Chart

Pump Material

  • Maintenance-free unattended operation solar water pump system with water level sensor.
  • Multistage centrifugal impeller anti-lock & anti-sand pump lift not just clean water.
  • Power frequency system & centrifugal pump, reliability performance even harsh conditions.
  • Special design low speed starting motor for the solar-powered system, high energy efficiency.

Outer MPPT Controller

  • Waterproof grade: IP65
  • Ambient temperature: -15C-60C
  • MPPT function, the solar power utilization rate is higher.
  • Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there
    is no sunshine, the battery can make the pump continuously working.
  • LED displays the power, voltage, current, speed, etc working conditions.
  • Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and
    the user also can change the speed of the pump manually.
  • Automatically start and stop working.
  • Waterproof and leak-proof: Double seal effect.
  • Soft start: No impulse current, protect the pump motor.
  • High voltage/Low voltage/Over- current/High temperature protection

Benefits

  • Long life expectancy: DC brushless motor for a long lifetime.
  • Fast and simple installation: Small size and portable, outer MPPT controller, easy for carrying and installation.
  • Designed for use in remote and harsh conditions: It’s workable for off-grid areas with solar panel power.
  • High efficiency: Special design low speed starting motor for the solar-powered system, high energy efficiency.
  • Hybrid power is available for AC home & industrial electricity.

Features

  • Engineered and manufactured in China.
  • Overload protection, over & under-voltage protection, thermal protection setting.
  • Automatic restart setting.
  • Maintenance-free unattended operation solar water pump system with water level sensor.
  • Submersible, it can be installed vertically or horizontally.
