4STD Series BLDC Centrifugal Solar Powered Water Pump System for Deep Well Borehole — Outer MPPT Controller

Application

PolexTech 4STD series centrifugal pumps are designed for drinking water supply, livestock watering, agriculture irrigation, desert control, industrial water supply, construction water supply, pasture watering, etc.

It’s simple, efficient, and reliable, widely used in the borehole, deep well, lake, river, pond, clean water places except for sea water, sewage water, and chemical water, etc.

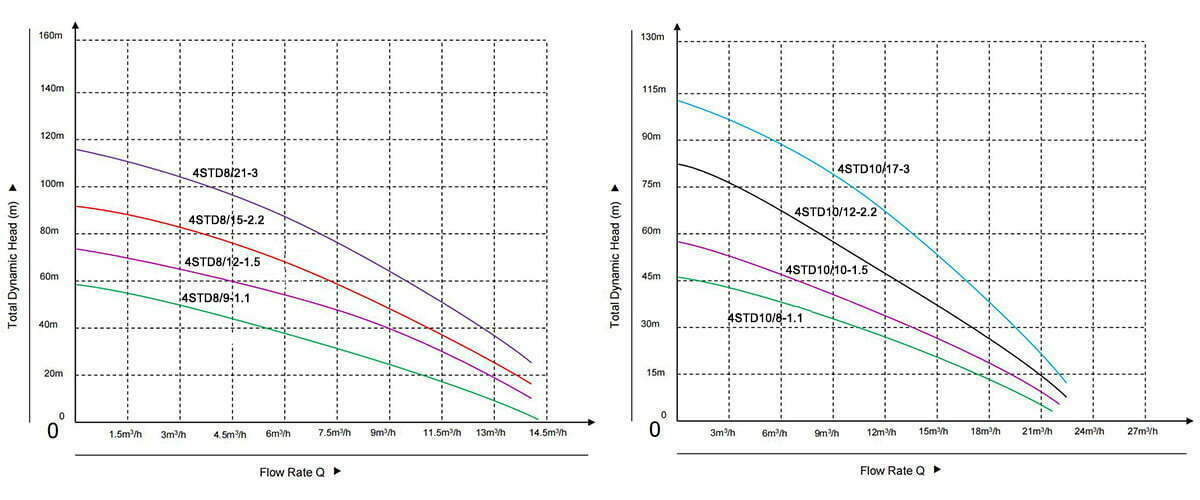

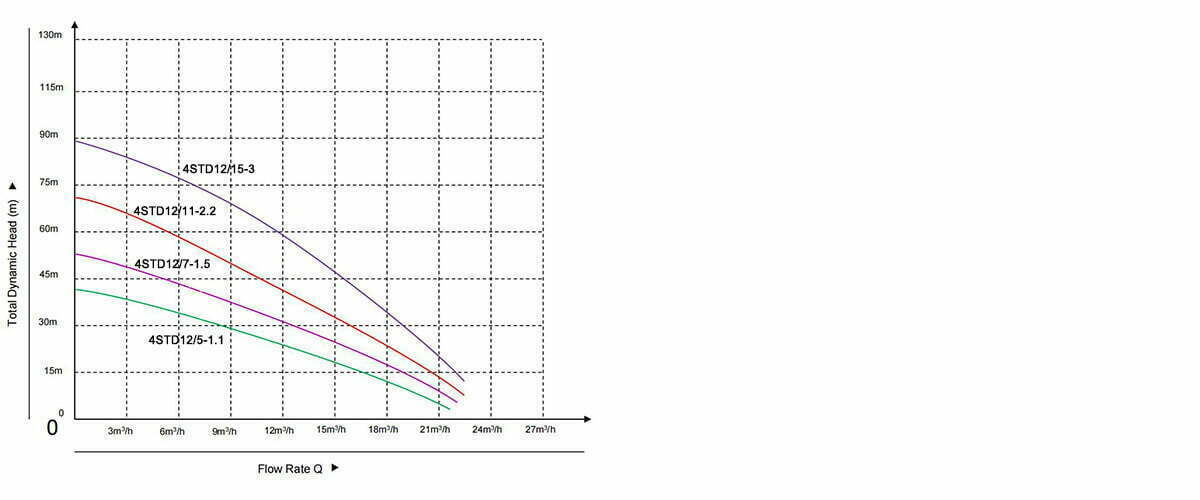

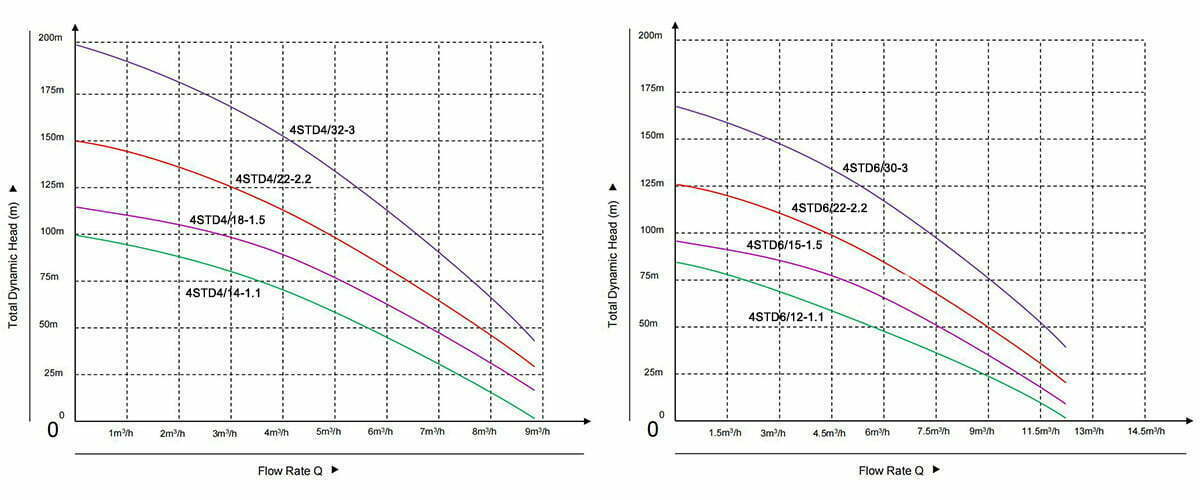

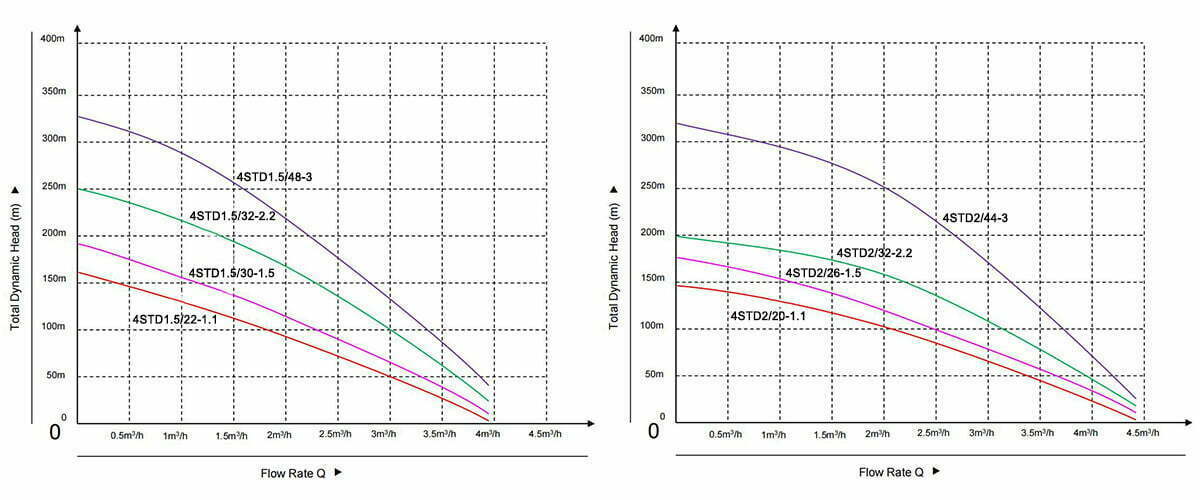

Performance Data

Pump Structure

Centrifugal Working Principle

Flow Chart

Installation Diagram

Pump Material

• Maintenance-free unattended operation solar water pump system with water level sensor.
• Multistage centrifugal impeller anti-lock & anti-sand pump lift not just clean water.
• Power frequency system & centrifugal pump, reliability performance even harsh conditions.
• Special design low speed starting motor for the solar-powered system, high energy efficiency.

Outer MPPT Controller

• Waterproof grade: IP65
• Ambient temperature: -15C-60C
• MPPT function, the solar power utilization rate is higher.
• Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there
  is no sunshine, the battery can make the pump continuously working.
• LED displays the power, voltage, current, speed, etc working conditions.
• Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and
  the user also can change the speed of the pump manually.
• Automatically start and stop working.
• Waterproof and leak-proof: Double seal effect.
• Soft start: No impulse current, protect the pump motor.
• High voltage/Low voltage/Over- current/High temperature protection

Benefits

• Long life expectancy: DC brushless motor for a long lifetime.
• Fast and simple installation: Small size and portable, outer MPPT controller, easy for carrying and installation.
• Designed for use in remote and harsh conditions: It’s workable for off-grid areas with solar panel power.
• High efficiency: Special design low speed starting motor for the solar-powered system, high energy efficiency.

Features

• Engineered and manufactured in China.
• Overload protection, over & under-voltage protection, thermal protection setting.
• Automatic restart setting.
• Maintenance-free unattended operation solar water pump system with water level sensor.
• Submersible, it can be installed vertically or horizontally.

Technical Data

• Pump size: 4 Inch (100mm) diameter
• Thread connections: 1.5 Inch (38mm) & 2 Inch (50mm) diameter
• Materials: Stainless steel AISI 304
• Max.acceptalbe media temp: 70°C
• Recommend solar panels of 1.5 – 2 times @ Max. lift & flow
• Net weight: 12-16kgs
• Gross weight: 14-18kgs
