3DCQL BLDC Motor Helical Rotor Solar Powered Water Pump — Outer MPPT Controller

Application

PolexTech 3DCQL helical rotor pumps are designed for drinking water supply, livestock watering, small agriculture irrigation, pond management, responsible leisure, etc.

It’s simple, efficient, and reliable, pumping water with very low levels of solar power, widely used in the borehole, deep well, lake, and where there are tiny particles only.

Performance Data

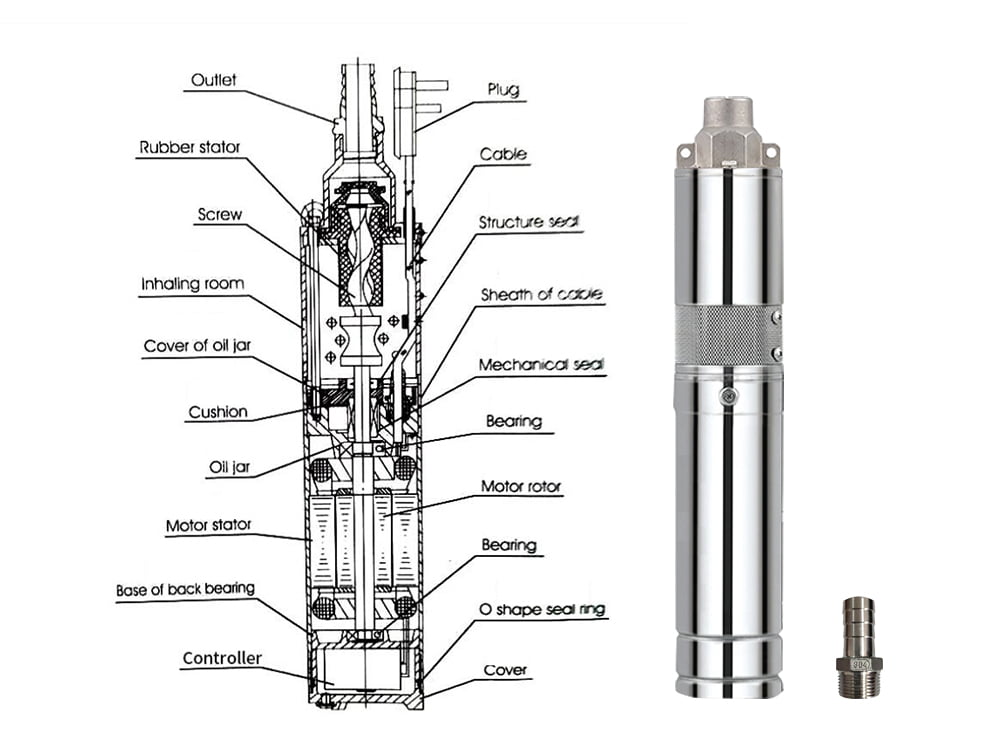

Pump Structure

Spare Parts Included in Package

Helical Rotor Working Principle

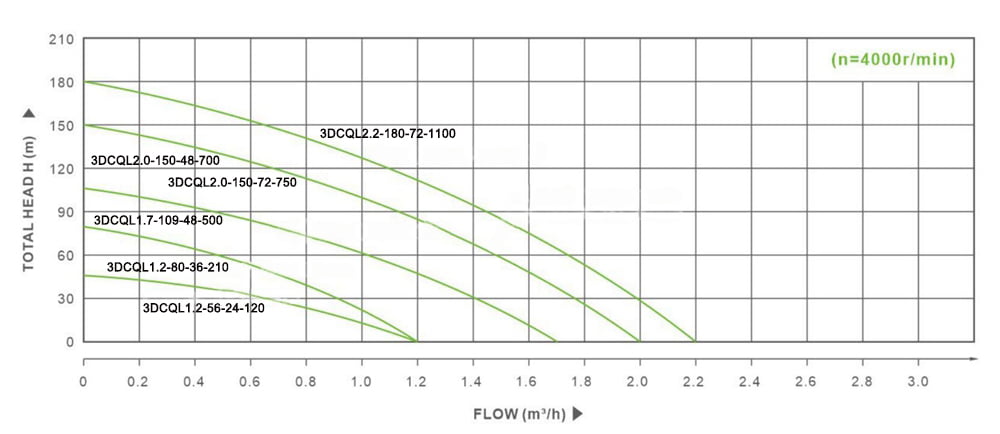

Flow Chart

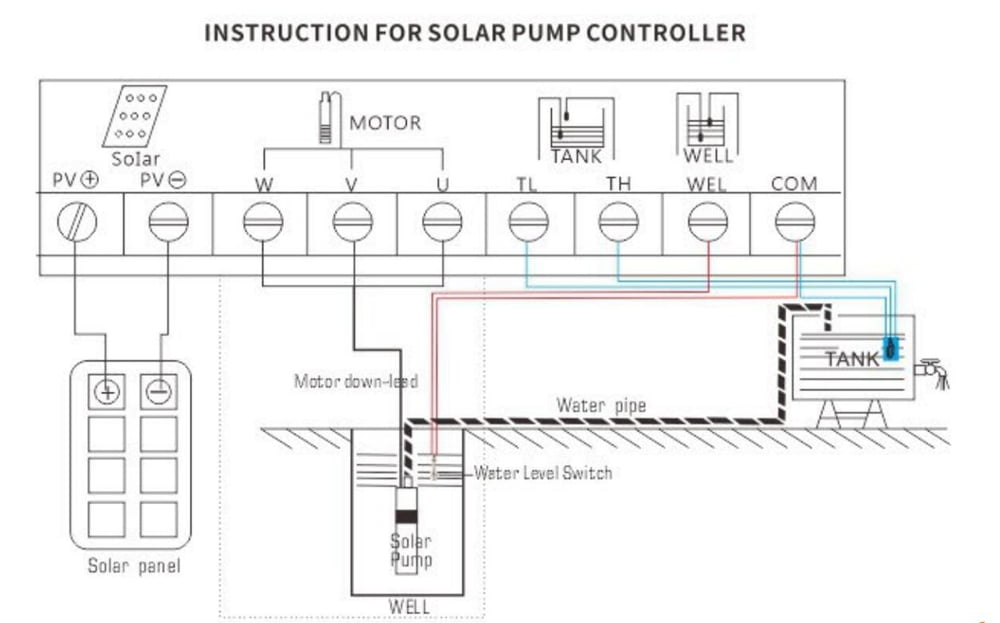

Installation Diagram

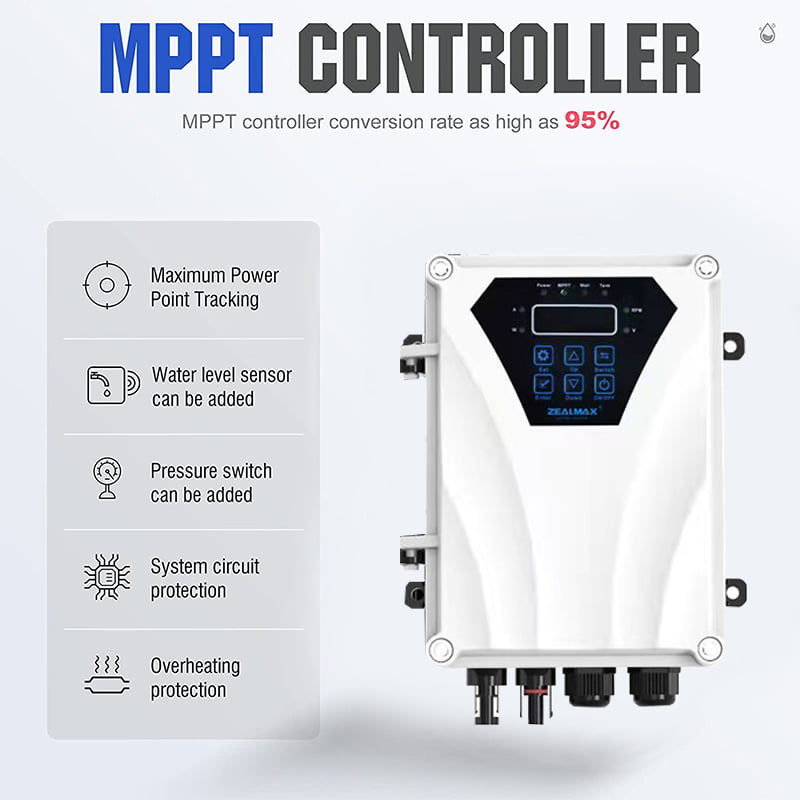

Outer MPPT Controller

Benefits

• Long life expectancy: DC brushless motor, more than 18000-20000 hours lifetime.
• Fast and simple installation: Small size and portable, outer MPPT controller, easy for carrying and installation.
• Control inputs for well probe, dry-running protection.
• Battery operation, low voltage disconnect for battery tracking.
• High efficiency: Special design low speed starting motor for the solar-powered system, high energy efficiency.
• Cost-effective spare parts philosophy: Helical Rotor, outer MPPT controller, and other spare parts are available.

Features

• Engineered and manufactured in China.
• Overload protection, over & under-voltage protection, thermal protection setting.
• Automatic restart setting.
• Dry -running with extra water level sensor.
• Submersible, it can be installed vertically or horizontally.

Technical Data

• Pump size: 3 Inch (76mm) diameter
• Thread connections: 0.75 Inch (19mm) diameter
• Materials: Stainless steel AISI 304
• Frequency range: 1-50HZ@ Max. Amp 16A
• Soft start low amp @0.5A motor speed 10RPM-4000RPM
• Max.acceptalbe media temp:70°C
• Recommend solar panels of 1.5 – 2 times @ Max. lift & flow
• Net weight: 9.40kgs
• Gross weight: 10.50kgs
• Package wooden case size: : 77.5*23.0*14.5cm
