280-320W Solar Panel — Monocrystalline

Application

The sun is the source of all life on Earth, and solar energy is useful to us in many different ways. The sun creates two main types of energy – light and heat – that we can harness for many activities ranging from photosynthesis in plants to creating electricity with photovoltaic (PV) cells.

Renewable energy is already becoming a more familiar part of our lives, and innovation will continue to drive new applications of solar energy technologies that will improve our daily lives and help power a cleaner world.

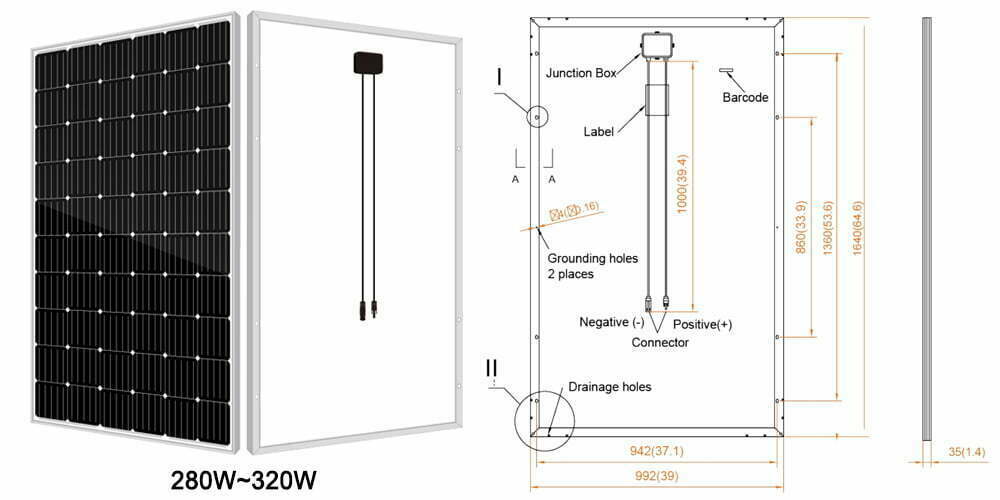

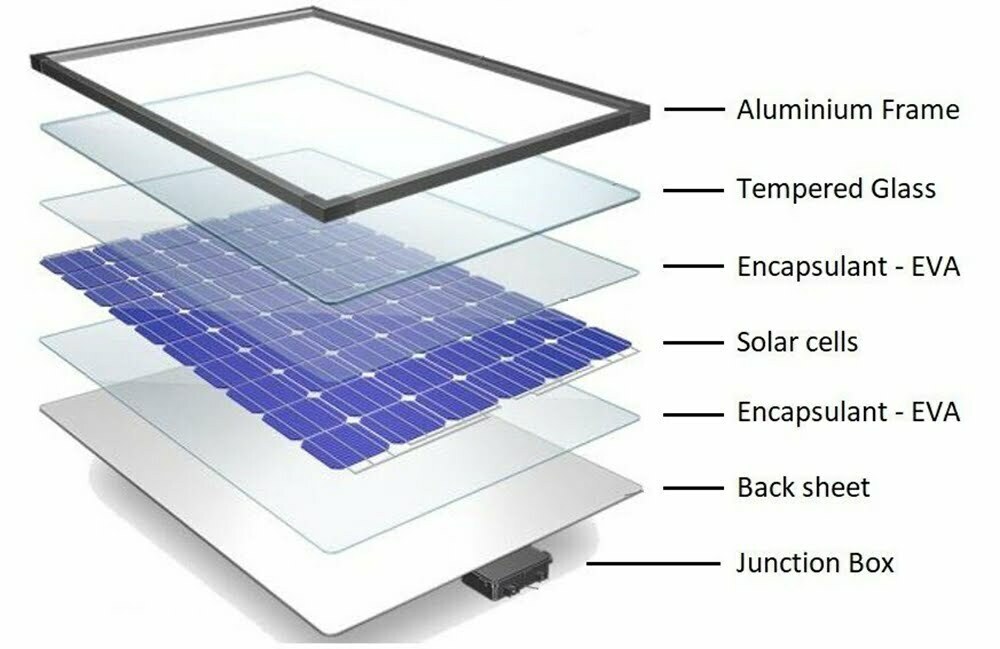

Solar Panel Structure

• Type: PERC, Half Cell
• Material: Monocrystalline silicon
• Frame: Anodized aluminum alloy
• Front Glass: 3.2 mm tempered, low iron
• Frame Color: Silvery, black and OEM color
• Junction Box: IP67

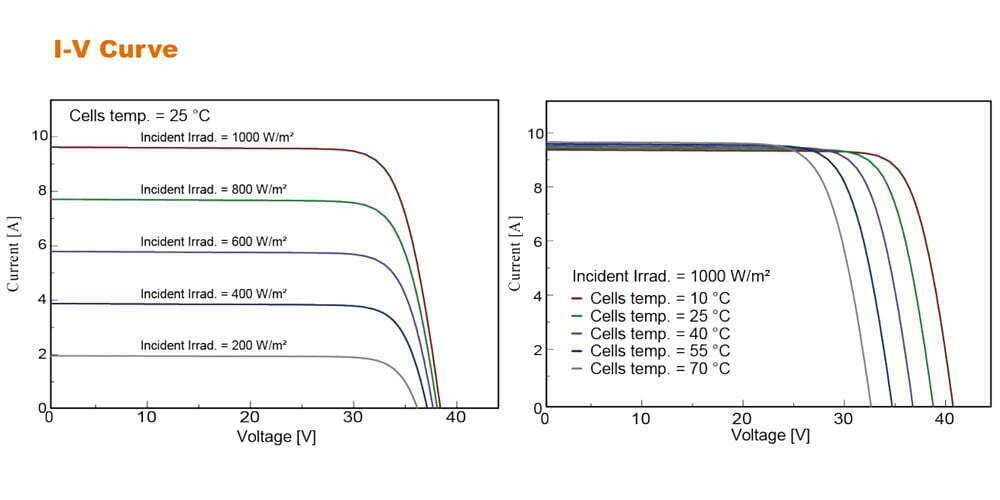

Performance Data

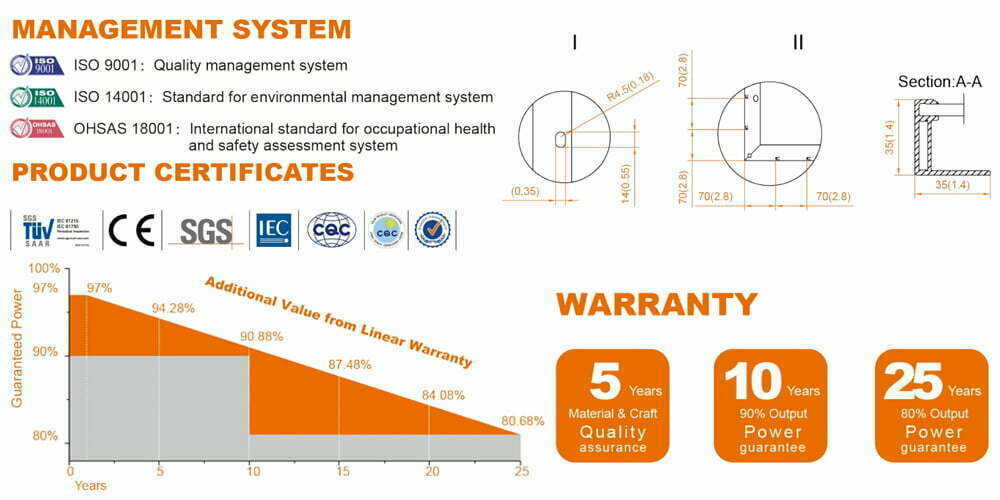

Performance Warranty

Technical Data & Packing

Features

• Antireflective glass: Translucency of normal luminance is increased by 2%,  and module efficiency is increased by 2%.
• High-efficiency PV cells: Anti-PID appearance consistency, color sorting ensure consistent appearance on each module.
• Conventional frame: Silver or black frames are optional, serrated-clip design tensile strength, seal-lip design glue injection.
• Junction box: IP67 protection level, heat dissipation, quality diode ensures module running safety.

Benefits

• New digital workshop: Each step of the production process is recorded and included in the MES (Manufacturing Execution System).
• External assessment: After lamination, the surface of the solar panel is checked to sure be complete, clean and correct.
• EL testing: Before and following lamination, twice testing to ensure no micro-crack monitoring before final inspection, continuous line monitoring and video/photo record for each cell and panel.
• IV testing: After lamination, conduct electrical performance testing to simulate the real sunlight and test the voltage and current of the solar panel to ensure the efficiency of the solar panel.
